Khoom Taw Qhia
Sab nraum zoov Deck Led Teeb yog tsim los rau cov ntoo / ntoo decks, cov kauj ruam, patio taug kev, hardscapes, thiab tsev so sab nraum zoov qhov chaw, muab qis - glare, kev taw qhia kev nyab xeeb, thiab teeb pom kev zoo.

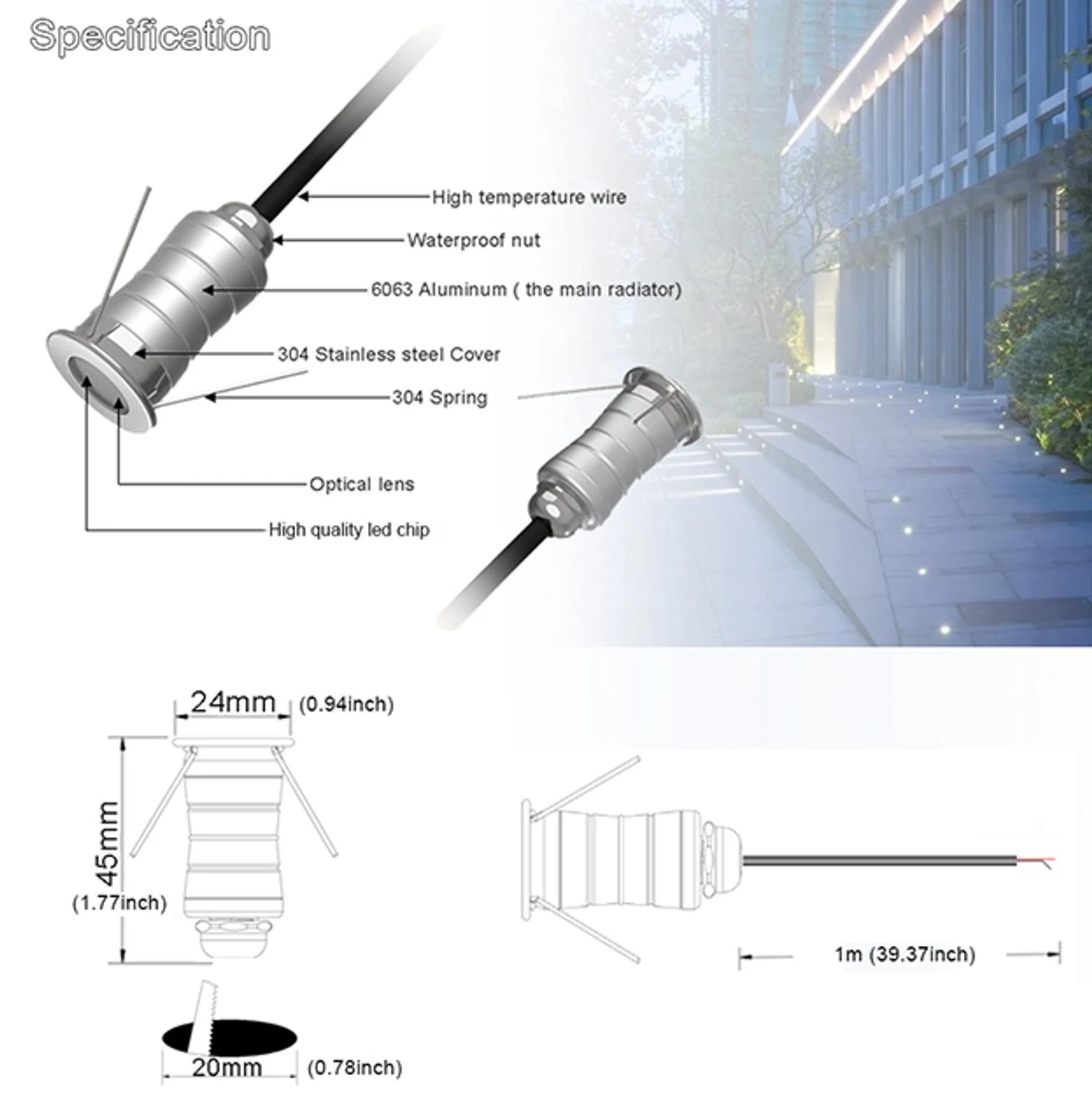

Specifications
|
Yam khoom No. |
YL-MBS02-X |
|
Qhov hluav taws xob |
DC 12/24V |
|
Wattage |
1W |
|
Led Qty |
1pc CREE XTE Chip |
|
Lumen |
1 40 lm |
|
CRI |
90r ua |
|
Beam Angle |
15/30/60/80 degree |
|
Tus nqi IP |
IP67 |
|
Dimension |
24 x 45 mm |
|
Qhov Loj |
20 hli |
|
Xim tsev |
Nyiaj / Dawb / Dub |
|
Khoom siv |
304 Stainless hlau + 6063 Aluminium |
|
Kab |
1m PVC cable nrog DC connector |
|
Warranty |
3 xyoo |
Qhov Tseem Ceeb Zoo
IP67 / IP68 Waterproof: Cov qauv kaw ua ke nrog kev tiv thaiv -siphon cable tsim txo qhov kev pheej hmoo ntawm dej nkag.
316/316L Stainless Hlau: Tsim nyog rau cov av noo siab, pas dej da dej, thiab ntug dej hiav txwv; Muaj ntau yam kev kho mob saum npoo.
Tsawg Glare Tsim: zais lub teeb ci, honeycomb anti-glare mesh, thiab ntau lub lo ntsiab muag txo qhov pom kev ncaj qha; txhawb lub teeb faib lub kaum sab xis ntawm 15℃/ 24℃/ 38℃/ 60℃.
Engineering Installation
Ua ntej- kev teeb tsa
Muab luminaire qhov ntev, qhib qhov ntev, thiab cov ntaub ntawv qhov tob rau kev teeb tsa kom yooj yim rau kev npaj.
Waterproof kev twb kev txuas
Optional IP68 connectors thiab kev cai cables txhawb kev sib txuas ceev ceev, txo ntawm - qhov chaw thaiv.
Kev them nyiaj yug Voltage Drop
Muab cov lus pom zoo ntawm cov khoom siv hluav taws xob thiab kev xaiv cable raws li qhov voltage, kab ntev, tus naj npawb ntawm cov luminaires, thiab lub zog.
Intelligent Control
Txhawb PWM, DALI-2, DMX512, thiab lwm yam dimming tswj nyob ntawm tus qauv.
Kev them nyiaj yug kho qhov muag
IES/LDT
Muab cov ntaub ntawv IES/LDT rau cov qauv siv, txhawb DIALux thiab Relux teeb pom kev zoo tsim.
CAD/BIM
Muab STEP, RVT, thiab kev teeb duab kos duab kom yooj yim tsim thiab tsim kho.
Ntau Beam Distributions
Txhawb nqa symmetrical, asymmetrical, thiab phab ntsa-ntxuav beam faib kom tau raws li qhov xav tau ntawm lawj, kauj ruam, thiab txoj kev teeb pom kev zoo.
Kev Tswj Xyuas Zoo
Kev ntsuas dej tsis haum
Ua airtightness thiab kev kuaj dej tsis zoo; cov ntaub ntawv xeem muaj nyob rau cov qauv siv tau.
Corrosion Resistance Testing
Cov qauv siv tau tuaj yeem dhau mus kuaj ASTM B117 ntsev tshuaj tsuag, thiab cov ntaub ntawv cuam tshuam tau muab.
Kev tshuaj xyuas lub Hoobkas
Cov khoom xa tuaj, tsim khoom, teeb pom kev zoo, kev laus, thiab kev tshuaj xyuas cov khoom tiav yog ua los xyuas kom meej cov khoom sib xws.
OEM / ODM
Khoom Customization
Customization ntawm qhov ntev, qhov qhib, lub zog, qhov hluav taws xob, CCT, CRI, nqaj kaum sab xis, thiab kev kho saum npoo yog txaus siab.
Hluav taws xob Customization
Customization ntawm cable ntev, connectors, thiab dimming daws yog txaus siab.
Hom Customization
Customization ntawm lub logo, cov ntawv lo, cov thawv xim, cov thawv sab nrauv, thiab cov barcodes tau txais kev txhawb nqa.
Samples thiab Batch Orders
Cov qauv, me me -batch txiav txim, thiab kev yuav khoom ntau tau txais kev txhawb nqa. Lub sij hawm xa tuaj yog paub tseeb raws li tus qauv thiab qhov ntau.
Kev them nyiaj yug
Cov ntaub ntawv technical
Cov ntaub ntawv, daim duab kos duab, IES/LDT, CAD/BIM, thiab cov ntaub ntawv xeem siv tau raug muab.
Cov qauv
Cov qauv engineering tau txais kev txhawb nqa rau kev kho qhov muag, kev teeb tsa, thiab kev txheeb xyuas kev ntseeg tau.
Ntim thiab xa khoom
Customized ntim, ntim cov ntaub ntawv, thiab cov ntaub ntawv xa khoom thoob ntiaj teb tau muab.
Warranty
Lub warranty txog li 5 xyoos yog muab, nyob ntawm tus qauv thiab daim ntawv cog lus.
Lub tuam txhab muaj zog
17+ Xyoo ntawm Kev Lag Luam Kev Lag Luam
Founded hauv 2009, peb tshwj xeeb hauv R & D, tsim, thiab xa tawm ntawm LED teeb pom kev zoo, npog sab nraum zoov, toj roob hauv pes, sab hauv tsev, thiab kev lag luam teeb pom kev zoo.
4,000㎡ Production Base
Peb muaj 4,000㎡ ntau lawm puag thiab tshaj 100 tus kws tshaj lij thiab cov neeg ua haujlwm tsim khoom, txhawb nqa ruaj khov ntawm kev txiav txim ntau.
US $ 20M + Kev muag khoom txhua xyoo
Kev muag khoom txhua xyoo ntau dua US $ 20 lab, nrog kwv yees li 95% ntawm cov khoom xa tawm, suav nrog kev lag luam hauv Europe, North America, thiab Australia.
Automated Ntau Lawm
Nruab nrog Yamaha SMT, reflow soldering, automated PCB, thiab cov khoom siv hlau sib txuas, txhim kho kev tsim khoom thiab sib xws.
Muaj peev xwm kuaj tau
Nruab nrog kev sib koom ua ke, kev ntsuas lub teeb pom kev zoo, thiab cov khoom siv kub thiab av noo tas li, suav nrog kev ntsuas qhov muag, hluav taws xob, thiab kev ntsuas ib puag ncig.
International Certifications
Peb tuav ISO9001, CE, RoHS, FCC, SAA, TUV, ETL, cETL, thiab CCC ntawv pov thawj, ua tau raws li qhov yuav tsum tau ua ntawm ntau lub khw muag khoom txawv teb chaws.
FAQ
Q: Koj puas tuaj yeem muab cov ntaub ntawv IES / CAD?
A: Yog lawm, IES / LDT thiab CAD / BIM cov ntaub ntawv muaj rau cov qauv siv tau.
Q: Puas tuaj yeem txiav - tawm qhov loj tuaj yeem hloov kho?
A: Yog, nws tuaj yeem hloov kho raws li qhov yuav tsum tau ua ntawm qhov project installation.
Q: Puas yog lawv tsim nyog rau cov phiaj xwm ntug dej hiav txwv?
A: Yog, 316/316L version raug pom zoo.
Q: Cov kev xaiv voltage twg muaj?
A: DC12V, DC24V, thiab qee tus qauv AC100-240V.
Q: Koj puas muab cov qauv?
A: Yog lawm, lawv muaj rau kev kuaj engineering.
Q: Lub sijhawm ua haujlwm OEM yog dab tsi?
A: Cov qauv feem ntau siv 3-7 hnub ua haujlwm; bulk lead lub sij hawm nyob ntawm tus qauv thiab kom muaj nuj nqis.
Q: Koj puas tuaj yeem muab cov ntawv pov thawj?
A: CE, RoHS, UKCA, ETL / UL, thiab CB cov ntaub ntawv muaj rau cov qauv siv tau.
Q: Koj puas kam txais kev txiav txim ntau?
A: Yog, peb txhawb qhov no thiab tuaj yeem muab MOQ, ntim, thiab cov ntaub ntawv nqi ntau.
